Surface Models¶
Let's build some analytical surface models using MEOW and SAX
import json
from hashlib import md5
from pathlib import Path
import jax.numpy as jnp
import matplotlib.pyplot as plt
import meow as mw
import numpy as np
import pandas as pd
import xarray as xr
from tqdm.notebook import tqdm
import sax
Silicon Refractive index¶

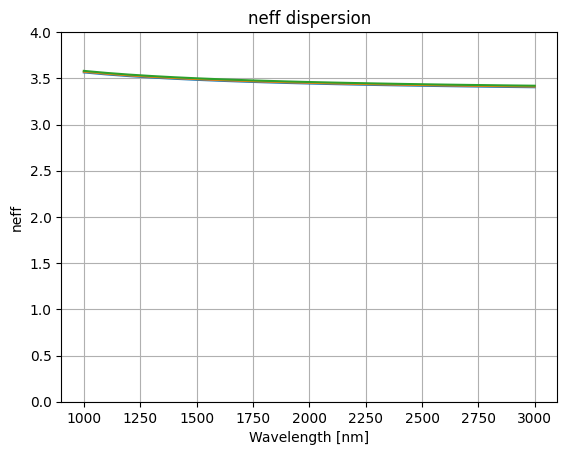

Let's create a rudimentary silicon refractive index model:
Warning
This refractive index model is not based on realistical data.
def silicon_index(wl, T):
"""A rudimentary silicon refractive index model with temperature dependence"""
a, b = 0.2411478522088102, 3.3229394315868976
dn_dT = 0.00082342342 # probably exaggerated
return a / wl + b + dn_dT * (T - 25.0)
wls = np.linspace(1.0, 3.0, 21)
for T in [25.0, 35.0, 45.0]:
plt.plot(1e3 * wls, silicon_index(wls, T))
plt.xlabel("Wavelength [nm]")
plt.ylabel("neff")
plt.title("neff dispersion")
plt.grid(True)
plt.ylim(0, 4)
plt.show()
Waveguide Modes¶
We can use meow to calculate the modes in our waveguide:
def find_waveguide_modes(
wl: float = 1.55,
T: float = 25.0,
n_box: float = 1.4,
n_clad: float = 1.4,
n_core: float | None = None,
t_slab: float = 0.1,
t_soi: float = 0.22,
w_core: float = 0.45,
du=0.02,
n_modes: int = 10,
cache_path: str | Path = "modes",
*,
replace_cached: bool = False,
):
length = 10.0
delta = 10 * du
env = mw.Environment(wl=wl, T=T)
if n_core is None:
n_core = silicon_index(wl, T)
cache_path = Path(cache_path).resolve()
cache_path.mkdir(exist_ok=True)
fn = f"{wl=:.2f}-{T=:.2f}-{n_box=:.2f}-{n_clad=:.2f}-{n_core=:.5f}-{t_slab=:.3f}-{t_soi=:.3f}-{w_core=:.3f}-{du=:.3f}-{n_modes=}.json"
path = cache_path / fn
if not replace_cached and path.exists():
return [mw.Mode.model_validate(mode) for mode in json.loads(path.read_text())]
# fmt: off
m_core = mw.SampledMaterial(name="slab", n=np.asarray([n_core, n_core]), params={"wl": np.asarray([1.0, 2.0])}, meta={"color": (0.9, 0, 0, 0.9)})
m_clad = mw.SampledMaterial(name="clad", n=np.asarray([n_clad, n_clad]), params={"wl": np.asarray([1.0, 2.0])})
m_box = mw.SampledMaterial(name="box", n=np.asarray([n_box, n_box]), params={"wl": np.asarray([1.0, 2.0])})
box = mw.Structure(material=m_box, geometry=mw.Box(x_min=- 2 * w_core - delta, x_max= 2 * w_core + delta, y_min=- 2 * t_soi - delta, y_max=0.0, z_min=0.0, z_max=length))
slab = mw.Structure(material=m_core, geometry=mw.Box(x_min=-2 * w_core - delta, x_max=2 * w_core + delta, y_min=0.0, y_max=t_slab, z_min=0.0, z_max=length))
clad = mw.Structure(material=m_clad, geometry=mw.Box(x_min=-2 * w_core - delta, x_max=2 * w_core + delta, y_min=0, y_max=3 * t_soi + delta, z_min=0.0, z_max=length))
core = mw.Structure(material=m_core, geometry=mw.Box(x_min=-w_core / 2, x_max=w_core / 2, y_min=0.0, y_max=t_soi, z_min=0.0, z_max=length))
cell = mw.Cell(structures=[box, clad, slab, core], mesh=mw.Mesh2D( x=np.arange(-2*w_core, 2*w_core, du), y=np.arange(-2*t_soi, 3*t_soi, du) ), z_min=0.0, z_max=10.0)
cross_section = mw.CrossSection.from_cell(cell=cell, env=env)
modes = mw.compute_modes(cross_section, num_modes=n_modes)
# fmt: on
path.write_text(json.dumps([json.loads(mode.model_dump_json()) for mode in modes]))
return modes

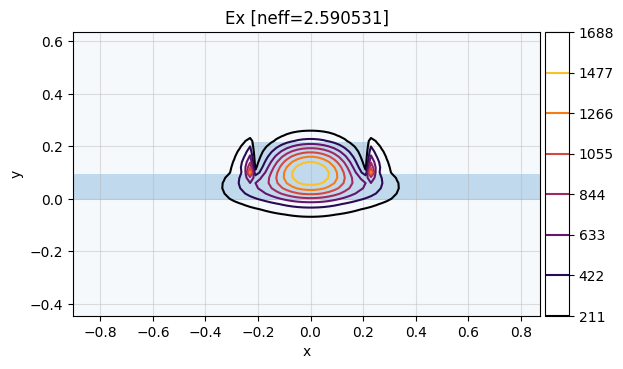

We can now easily calculate the modes of a strip waveguide:
def calculate_neffs(wls, Ts, *, replace_cached=False):
key = md5(wls.tobytes() + b"\x00" + Ts.tobytes()).hexdigest()[:8]
path = Path("modes").resolve() / f"{key}.csv"
if not replace_cached and path.exists():
return pd.read_csv(path)
neffs = np.zeros((wls.shape[0], Ts.shape[0]))
for i, wl in enumerate(pb := tqdm(wls)):
for j, T in enumerate(Ts):
pb.set_postfix(T=f"{T:.2f}C")
modes = find_waveguide_modes(wl=wl, T=T, w_core=0.5, replace_cached=False)
neffs[i, j] = np.real(modes[0].neff)
xarr = xr.DataArray(data=neffs, coords={"wl": wls, "T": Ts})
df = sax.to_df(xarr, target_name="neff")
df.to_csv(path, index=False)
return df

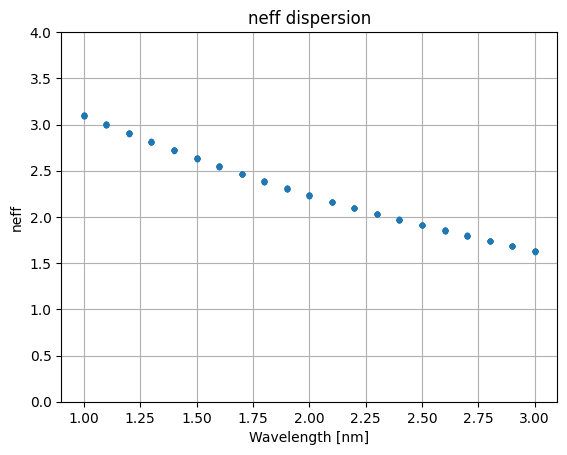

wls = np.linspace(1.0, 3.0, 21)
Ts = np.linspace(25, 35, 11)
df = calculate_neffs(wls, Ts, replace_cached=False)
plt.plot(df.wl, df.neff, ls="none", marker=".")
plt.xlabel("Wavelength [nm]")
plt.ylabel("neff")
plt.title("neff dispersion")
plt.grid(True)
plt.ylim(0, 4)
plt.show()
result = sax.fit.neural_fit(df, targets=["neff"], num_epochs=3000)
surface_model = result["predict_fn"]
0%| | 0/3000 [00:00<?, ?it/s]

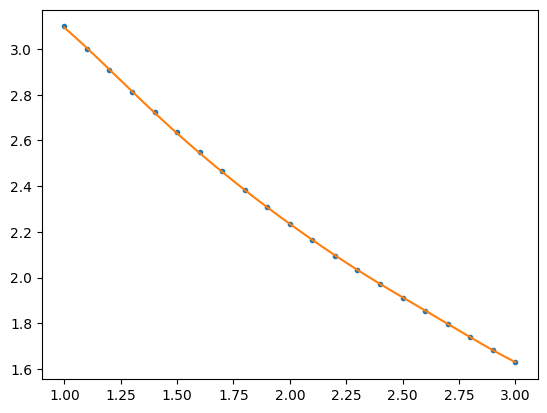

Prediction¶
T = 31.0
df_sel = df.query(f"T=={T:.1f}")
plt.plot(df_sel.wl, df_sel.neff, ls="none", marker=".")
wl = jnp.linspace(df_sel.wl.min(), df_sel.wl.max(), 201)
T = T * jnp.ones_like(wl)
neff_pred = surface_model(jnp.stack([wl, T], axis=1))
plt.plot(wl, neff_pred)
plt.show()
Equation¶
\(\displaystyle - 0.111191802586104 \tanh{\left(- 0.600317366952325 T + 1.54846504944971 wl + 14.2272048582564 \right)} + 0.180757975443552 \tanh{\left(- 0.457411832080669 T + 1.25568437816402 wl + 10.614732777431 \right)} + 0.107327818114191 \tanh{\left(- 0.25649703408395 T + 1.67111893010048 wl + 5.1256823674601 \right)} - 0.0898577799557729 \tanh{\left(- 0.225850362933715 T + 0.790158764514527 wl + 4.69186447361556 \right)} - 0.151898347397017 \tanh{\left(- 0.189879669993807 T + 1.59611170859548 wl + 3.27735371452777 \right)} + 0.383908389244572 \tanh{\left(0.00369014645440011 T - 1.83824748809467 wl + 1.93052206415554 \right)} + 0.177426903448328 \tanh{\left(0.0102029156991074 T - 2.29191621436434 wl + 6.26841403281157 \right)} - 0.198500270340145 \tanh{\left(0.061876158041826 T + 1.18462265069521 wl - 4.11404913741124 \right)} + 0.412859497897128 \tanh{\left(0.0953365220520588 T - 2.12223348019723 wl + 1.30945166982991 \right)} - 0.222415152240564 \tanh{\left(0.131198421445111 T - 2.50971948440061 wl + 0.935123955664435 \right)} + 2.46005737019216\)
Python Function¶
def neff(
wl: sax.FloatArrayLike,
T: sax.FloatArrayLike,
) -> sax.FloatArray:
return jnp.asarray(-0.111191802586104*jnp.tanh(-0.600317366952325*T + 1.54846504944971*wl + 14.2272048582564) + 0.180757975443552*jnp.tanh(-0.457411832080669*T + 1.25568437816402*wl + 10.614732777431) + 0.107327818114191*jnp.tanh(-0.25649703408395*T + 1.67111893010048*wl + 5.1256823674601) - 0.0898577799557729*jnp.tanh(-0.225850362933715*T + 0.790158764514527*wl + 4.69186447361556) - 0.151898347397017*jnp.tanh(-0.189879669993807*T + 1.59611170859548*wl + 3.27735371452777) + 0.383908389244572*jnp.tanh(0.00369014645440011*T - 1.83824748809467*wl + 1.93052206415554) + 0.177426903448328*jnp.tanh(0.0102029156991074*T - 2.29191621436434*wl + 6.26841403281157) - 0.198500270340145*jnp.tanh(0.061876158041826*T + 1.18462265069521*wl - 4.11404913741124) + 0.412859497897128*jnp.tanh(0.0953365220520588*T - 2.12223348019723*wl + 1.30945166982991) - 0.222415152240564*jnp.tanh(0.131198421445111*T - 2.50971948440061*wl + 0.935123955664435) + 2.46005737019216)
# copied from the output above
def neff(
wl: sax.FloatArrayLike,
T: sax.FloatArrayLike,
) -> sax.FloatArray:
return jnp.asarray(-0.111191802586104*jnp.tanh(-0.600317366952325*T + 1.54846504944971*wl + 14.2272048582564) + 0.180757975443552*jnp.tanh(-0.457411832080669*T + 1.25568437816402*wl + 10.614732777431) + 0.107327818114191*jnp.tanh(-0.25649703408395*T + 1.67111893010048*wl + 5.1256823674601) - 0.0898577799557729*jnp.tanh(-0.225850362933715*T + 0.790158764514527*wl + 4.69186447361556) - 0.151898347397017*jnp.tanh(-0.189879669993807*T + 1.59611170859548*wl + 3.27735371452777) + 0.383908389244572*jnp.tanh(0.00369014645440011*T - 1.83824748809467*wl + 1.93052206415554) + 0.177426903448328*jnp.tanh(0.0102029156991074*T - 2.29191621436434*wl + 6.26841403281157) - 0.198500270340145*jnp.tanh(0.061876158041826*T + 1.18462265069521*wl - 4.11404913741124) + 0.412859497897128*jnp.tanh(0.0953365220520588*T - 2.12223348019723*wl + 1.30945166982991) - 0.222415152240564*jnp.tanh(0.131198421445111*T - 2.50971948440061*wl + 0.935123955664435) + 2.46005737019216) # fmt: skip

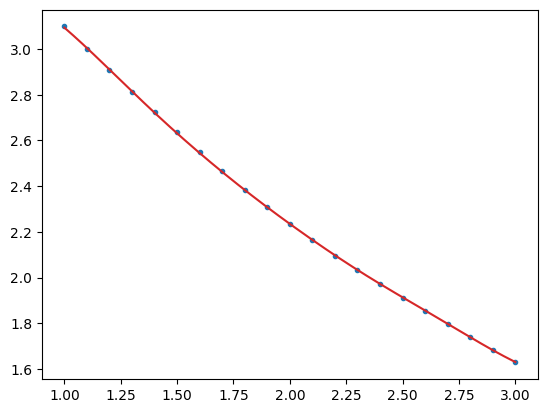

T = 31.0
df_sel = df.query(f"T=={T:.1f}")
plt.plot(df_sel.wl, df_sel.neff, ls="none", marker=".")
wl = jnp.linspace(df_sel.wl.min(), df_sel.wl.max(), 201)
T = T * jnp.ones_like(wl)
neff_pred = neff(wl, T)
plt.plot(wl, neff_pred, color="C3")
plt.show()
